3. The potentiometer makes it easier to adjust output voltage
4. Surge protection: L-N: 6KV, L/N-PG: 8KV
5. IP67
Warranty
5 years
Application
Outdoor lighting, landscape/building lighting, LED lightbox, etc.
Certification
ENEC, CE, CB, UL, FCC, RCM
Items Description
AUSTRALIAN STANDARD APPROVED POWER SUPPLY
IP67 waterproof with 1 metre long AU PLUG
Industrial Grade quality for Heavy duty use
High efficiency
5 years warranty
Model
OutputPower （W）
InputVoltage （V）
OutputVoltage （V）
OutputCurrent (mA)
Efficiency
Output voltage tolerance
Dimension L*W*H/mm
LF-GOE075YV012A
75
220-277
12
0.24 - 6.25
87%(230Vac)
92%-108%
170*61*34
LF-GOE100YV012A
100
220-277
12
0.4 - 8.34
89%(230Vac)
92%-108%
170*61*34
LF-GOE150YV012A
138
220-277
12
0.4 - 11.5
93%(230Vac)
92%-108%
170*61*34
LF-GOE150YV024A
150
220-277
24
0.4 - 6.25
93%(230Vac)
92%-108%
170*61*34
LF-GOE200YV012A
200
220-277
12
0.4 - 16.67
93%(230Vac)
92%-108%
228*63*34
LF-GOE250YV024A
250
220-277
24
0.4 - 10.42
93%(230Vac)
92%-108%
228*63*34

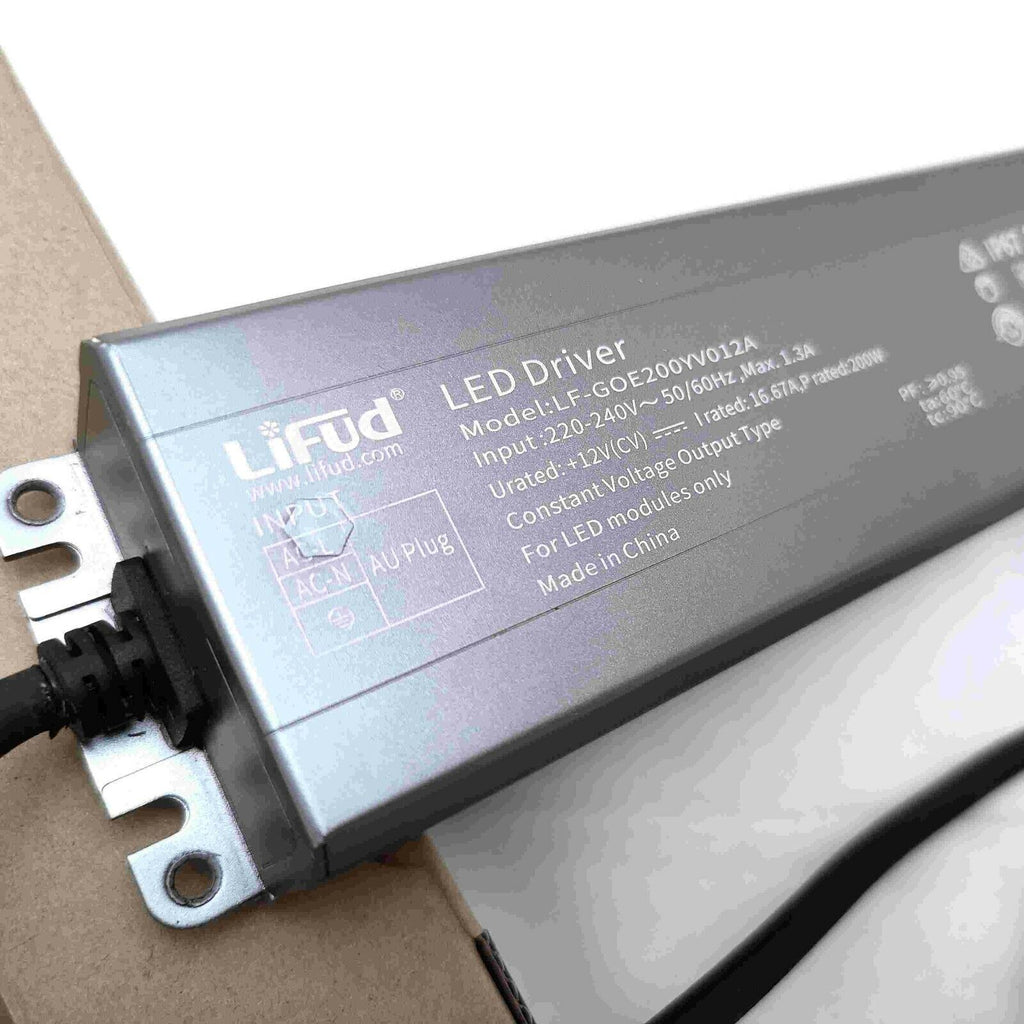

LF-GOExxxYV is a constant voltage LED power supply, specifically designed for outdoor lighting, flood light and landscape lighting. Rated input voltage: 100-277VAC (limit: 90-305V). Super high efficiency and excellent heat-dissipation properties of this product help to extend the product lifetime. It also has ultra high power factor and extremely low THD. All-round protections including surge protection, over voltage protection, short circuit protection and over temperature protection greatly improve the product stability. The output voltage can be conveniently adjusted via the potentiometer at the bottom of the driver so as to meet diverse demands.
Feature
*Efficiency up to 93%
*Plug length: 1 metre
*Output wire length:25CM
*Input voltage range: 100-277VAC; THD <15%
*The output voltage can be conveniently adjusted via the potentiometer, simplifying the inventory management
*Surge protection: L-N: 6KV; L/N-GND 8KV
*All-round protections: over voltage protection, short circuit protection, over temperature protection and IP67
